NVR301-08S3-P8

Uniview NVR301-08S3-P8 with POE, 8MP Series

IP Video Input: 8ch, ONVIF cameras supported: Profile S, G and T
Cloud upgrade for NVR and Uniview cameras
Bandwidth: Incoming 64Mbps; Outgoing 48Mbps; Network Interface: 1xRJ45 100Mbps
Live view / Playback / Recording: 8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
VCA Face detection, Intrusion detection, Cross line detection, Audio detection, Face search, Behavior
search

HDMI 3840×2160/30Hz; VGA 1920x1080p@60H
8 independent 100Mbps PoE, 75W total POE, Max 30W for single port, IEEE 802.3at & af
Hard Disk: 1 SATA interface, Up to 6/10TB
Power Supply: 52V DC, ≤ 9 W( without HDD )
Working Environment: -10°C ~ + 55°C, Humidity ≤ 90% RH(non-condensing)
Dimensions (W×D×H): 260.0mm × 240mm ×46mm; Rack mount kit RM-1U-260
Weight (without HDD ): ≤ 1,1 Kg

https://www.uniview.com/Products/NVR/Easy/NVR301-S3/

NVR302-16E2-P16

Uniview NVR302-16E2-P16 with POE 4k Series, 2xSATA, 2xRJ45

IP Video Input: 16ch, ONVIF cameras supported: Profile S, G and T
Cloud upgrade for NVR and Uniview cameras
Bandwidth: Incoming 320Mbps; Outgoing 320Mbps; Network Interface: 2xRJ45 1000Mbps
Live view / Playback / Recording: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

HDMI 4K (3840×2160)@30Hz and VGA 1920x1080p@60Hz simultaneous output
VCA Detection: Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection,
Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, People Flow Counting,
Crowd Density Monitoring
VCA Search: Behavior search, Vehicle search
ALARM: 8xIN; 2xOUT; RS485
Hard Disk: 2 SATA interface, Up to 10TB
Power Supply: 12V DC, ≤ 20 W( without HDD )
Working Environment: -10°C ~ + 55°C, Humidity ≤ 90% RH(non-condensing)
Dimensions (W×D×H): 380mm × 315mm ×53mm, Weight (without HDD ): ≤ 1 Kg
Rack mount kit RM-1U-380

https://global.uniview.com/Products/NVR/Easy/NVR302-E2-P/#~Product%20specification

NVR304-32E2

Uniview NVR304-32E2 4k Series, 4xSATA, 2xRJ45

IP Video Input: 32ch, ONVIF cameras supported: Profile S, G and T
Cloud upgrade for NVR and Uniview cameras
Bandwidth: Incoming 320Mbps; Outgoing 320Mbps; Network Interface: 2xRJ45 1000Mbps
Live view / Playback / Recording: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

HDMI 4K (3840×2160)@30Hz and VGA 1920x1080p@60Hz simultaneous output
ANR technology to enhance the storage reliability when the network is down
VCA Detection: Face detection, Face comparison, Intrusion detection, Cross line detection, Enter area,
Leave area, Defocus detection, Scene change detection, Object left behind, Object removed, Auto
tracking, People Counting
VCA Search: Face search, Face comparison search, Behavior search, Vehicle search
ALARM: 8xIN; 2xOUT; RS485
Hard Disk: 4 SATA interface, Up to 10TB, RAID 1, 5,
Power Supply: 12V DC, ≤ 20 W( without HDD )
Working Environment: -10°C ~ + 55°C, Humidity ≤ 90% RH(non-condensing)
Dimensions (W×D×H): 380mm × 315mm ×53mm, Weight (without HDD ): ≤ 1 Kg
Rack mount kit included

https://www.uniview.com/Products/NVR/Easy/NVR304-E2/#~Product%20specification

KIT/NVR301-04LS2-W/4*IPC2122LR3-F40W-E

Uniview NVR301-04LS2-W & 4x IPC2122LR3-F40W-E

WiFi 2.4GHz, IEEE 802.11b/g/n, CCMP and WPA2-PSK, LOS Range 280m
IP Video Input: 4ch, ONVIF Compatible Integration: Profile S and T
Bandwidth: Incoming 40Mbps; Outgoing 40Mbps; Network Interface: 1xRJ45 100Mbps
Live view / Playback / Recording: 5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

HDMI & VGA (1920x1080p@60Hz) simultaneous output
Hard Disk: 1 SATA interface, Up to 6TB
Power Supply: 12VDC, ≤ 9 W( without HDD )
Working Environment: -10°C ~ + 55°C, Humidity ≤ 90% RH(non-condensing)
Dimensions (W×D×H): 205mm × 205mm × 46mm, Weight (without HDD ): ≤ 0,58 Kg
4x 2MP IPC2122LR3-F40W-E
WiFi 2.4GHz, IEEE 802.11b/g/n, WPA2-PSK, Bandwidth 20MHz,
1/2.9″ CMOS, Progressive Scan, 1920×1080@25fps, DC12V, IP67, RJ45 100M,
Fixed lens 4mm@F2.0, 82.0° (H); 41.4° (V); Day/Night with IRC, Smart IR up to 30m
Ultra 265/H.264/MJPEG, Triple stream; ONVIF (Profile S, Profile T), API
HLC, DWDR, BLC, Privacy mask, ROI, Motion detection areas
Main Stream: 1920*1080@20fps; Sub 1280*720@20fps;
DC 12V±25%, Max 4W
Temperature Range: -30°C to 60°C, Dimensions: 161.1 × 62.5 × 62.7mm, Weight: 0,25kg

https://www.uniview.com/Products/NVR/Easy/KIT-NVR301-04LS2-W_4-IPC2122LR3-
F40WE/#~Product%20specification

LN-POEPL03S

3 Ports POE Extender

Prikladan za montažu u podnožja TR-JB05-A-IN; TR-JB04-C-IN; TR-JB04-C-IN; TR-JB04-C-IN
POE Extender 3x(PoE Out) + 1x(PoE In)
POE Out Ports 1-3: 10/100M Auto MDI/MDIX
PoE In (Uplink) Ports 4: 10/100M Auto MDI/MDIX
PoE 802.3AF Standard power: 15.4W/port
PoE 802.3AT Maximum power: 24W/port;
PoE Power Budget: 30W, Power Distance 100m
PoE Output Power Max 24W / Average per port: 8W
Power Pin Both 1/2+、 3/6- and 4/5+7/8-

LED Display: Status/Power
Input Voltage: PoE In (Uplink)
Switching capacity: 1.0Gbps, MAC table:1K; Store and Forward
Working Temperature: -10°C ~ +55°C,
Dimensions: 84mm*54mm*27mm(L*W*H); Weight 100g;

KD-C358L Outdoor Wireless Bridge

KD-C358L Outdoor Wireless Bridge

5GHz 300Mbps 802.11a/n 2x2MIMO Outdoor Wireless CPE (Hi-Gain);
Antenna Gain 14dBi dual-polarized directional antenna;
Frequency 5.150~5.825GHz;
Point-to-Point; Point-to-Multipoint (within 8 points);
Tx power is boosted up to 27dBm; distance up to 2km;
Wireless Security WPA/WPA2; WPA-PSK/WPA2-PSK(AES/TKIP);
IP65 windproof, rainproof and dustproof protection grade for harsh outdoor environments;
Network 2*10/100 Mbps self-adaptive;

Power Supply: Passive POE 24V/1A (up to 60m); DC 12V/1A; Power Consumption < 10W;
Working Temp: -30℃～+55℃; Working Humidity: 10％～90％;
Dimensions: 90 x 260 x 40mm;

1.WD10PURZ, 2.WD20PURZ, 3.WD40PURZ, 4.WD62PURX, 5.WD84PURU

1. TVRDI DISK SATA II/III, 3,5”, 1TB, PURPLE, Optimized for surveillance, Always-on 24/7

2. TVRDI DISK SATA II/III, 3,5”, 2TB, PURPLE, Optimized for surveillance, Always-on 24/7

3. TVRDI DISK SATA II/III, 3,5”, 4TB, PURPLE, Optimized for surveillance, Always-on 24/7

4. TVRDI DISK SATA II/III, 3,5”, 6TB, PURPLE, Optimized for surveillance, Always-on 24/8

5. TVRDI DISK SATA II/III, 3,5”, 8TB, PURPLE, Optimized for surveillance, Always-on 24/7

IPC322LB-DSF28K

2MP Vandal-resistant Network IR Fixed Dome Camera

1/2.7″ CMOS, Progressive Scan, 1920×1080@25fps, DC12V & PoE, IP 67, 3-Axis, IK10
Fixed lens 2,8mm@F2.0, 112,9° (H); 59.1° (V);
Day/Night with IRC, Smart IR up to 30m, 850nm
Ultra 265/H.264/MJPEG, Triple stream; ONVIF (Profile S, Profile T), API
HLC, BLC, WDR120dB, Privacy mask, ROI, Motion detection areas

MicroSD card up to 128GB, ANR recording
Main Stream: 1920*1080@25fps; Sub 1280*720@25fps; Third: 352*288@25fps
DC 12V±25%, PoE (IEEE 802.3af), Max 5W, Surge Protection 4kV
Temperature Range: -30°C to 60°C
Dimensions: Φ109 x 81mm, Weight: 0,36kg
TR-JB03-G-IN (Junction Box); TR-WM03-D-IN (Wall Mount)

https://www.uniview.com/Products/Cameras/Easy/IPC322LB-DSF28(40)K-G/

IPC2122LB-SF40-A

2MP MiniFixed Bullet Network Camera

1/2.8″ CMOS, Progressive Scan, 1920×1080@305fps, DC12V & PoE, IP 67,
Fixed lens 4,0mm@F2.0,87.5° (H); 46.3° (V); Day/Night with IRC, Smart IR up to 30m
Ultra 265/H.264/MJPEG, API, HLC, DWDR, BLC, Privacy mask, ROI, Motion detection areas
Main Stream: 1920*1080@30fps; Sub 1280*720@30fps;
Temperature Range: -30°C to 60°C

Dimensions: 161(L)x63(W)x62(H)mm, Weight: 0,26kg
DC 12V±25%, PoE (IEEE 802.3af), Max 5.5W, Surge protection 4kV
TR-JB05-A-IN (Junction Box); TR-UP06-IN (Junction Box Pole Mount Adapter);

IPC3615LR3-PF28-D

2MP Vandal-resistant WiFi IR Fixed Dome Camera

1/2.7″ CMOS, Progressive Scan, 1920×1080@25fps, DC12V, IP 67, 3-Axis, IK10
Fixed lens 2,8mm@F2.0, 112,7° (H); 60.1° (V); Day/Night with IRC, Smart IR up to 30m
WiFi IEEE802.11b/g/n
Ultra 265/H.264/MJPEG, Triple stream; ONVIF (Profile S, Profile T), API
HLC, BLC, DWDR, Privacy mask, ROI, Motion detection areas

Main Stream: 1920*1080@25fps; Sub 1280*720@25fps; Third: 352*288@25fps
Micro SD, up to 256 GB
DC 12V±25%, Max 5W, Surge Protection 2kV
Temperature Range: -30°C to 60°C
Dimensions: Φ109 x 81mm, Weight: 0,45kg
TR-JB03-G-IN (Junction Box); TR-WM03-D-IN (Wall Mount)

https://www.uniview.com/Products/Cameras/Easy/IPC322SR3-VSF28W-D/

IPC2122SR3-F40W-D

2MP WIFI Bullet Network Camera

1/2.7″ CMOS, Progressive Scan, 1920×1080@25fps, DC12V, IP 67,
Fixed lens 4mm@F2.0, 86.5° (H); 44.1° (V); Day/Night with IRC, Smart IR up to 30m
WiFi IEEE802.11b/g/n
Ultra 265/H.264/MJPEG, Triple stream; ONVIF (Profile S, Profile T), API
HLC, DWDR, BLC, Privacy mask, ROI, Motion detection areas

Main Stream: 1920*1080@25fps; Sub 1280*720@25fps; Third : 352*288@25fps
Micro SD, up to 256 GB
Temperature Range: -30°C to 60°C

Dimensions: 167(L)x63(W)x63(H)mm, Weight: 0,26kg
DC 12V±25%,, Max 5.5W
TR-JB05-A-IN (Junction Box); TR-UP06-IN (Junction Box Pole Mount Adapter);
https://www.uniview.com/Products/Cameras/Easy/IPC2122SR3-F40W-D/

IPC3614LE-ADF28KC-WL BLACK

4MP Turret Fixed Dome Network Camera, WDR 120dB, Audio, 0,005Lux,

1/3″ CMOS, Progressive Scan, 2952×1520@20fps, DC12V & PoE, IP 67, 3-Axis
Fixed lens 2,8mm@F2.0, 104,4° (H); 54.4° (V);
Dual Light ColorHunter
IR Range Up to 30m (98ft) IR range
White Light Range Up to 30m (98ft) white light range
Ultra 265/H.264/MJPEG, Triple stream; ONVIF (Profile S, Profile T), API
HLC, WDR 120dB , BLC, Privacy mask, ROI, Motion detection areas

Main Stream: 2952×1520@20fps; Sub 1280*720@25fps; Third: 720*576@25fps
DC 12V±25%, PoE (IEEE 802.3af), Max 8W
Audio G.711 built in Mic & Speaker, Two-way Audio
MicroSD card up to 128GB, ANR recording
Temperature Range: -30°C to 60°C, 4kV prenaponska zaštita
Dimensions: 118(Ø)x96(H)mm, Weight: 0,35kg
TR-JB03-I-IN (Junction Box); TR-WM03-D-IN (Fixed Dome Mount); TR-UP06-IN (Pole Mount)

https://en.uniview.com/Products/Cameras/Easy/IPC3614LE-ADF28(40)KC-WL/

IPC3534LB-ADZK-G

4MP Vandal-resistant Network IR Dome Camera WDR 120dB, Audio, 0.003Lux

1/3″ CMOS, Progressive Scan, 4MP, DC12V & PoE, IP 67, IK10
Lens 2.8 – 12mm, motorized, 102.79°~ 30.86° (H); 54.50°~ 17.49°(V);
Day/Night with IRC, Smart IR up to 40m
Ultra 265/H.264/MJPEG, Triple stream; ONVIF (Profile S, Profile T), API
120dB WDR, HLC BLC, Privacy mask, ROI, Motion detection areas

Main Stream: 4MP 2688*1520@30fps; Sub 1280*720@30fps
MicroSD card up to 256GB, ANR recording, Audio Built-in Mic, 9:16 Corridor Mode
DC 12V±25%, PoE (IEEE 802.3af), Max 7.5W
Temperature Range: -30°C to 60°C 6kV prenaponska zaštita
Dimensions: Φ128mmx100mm , Weight: 0,65kg
TR-JB03-H-IN (Junction Box); TR-WM03-B-IN (Wall mount) TR-UP06-IN (Pole Mount )

https://www.uniview.com/Products/Cameras/Easy/IPC3534LB-ADZK-G/

IPC3605SB-ADF16KM-I0

Uniview IPC3605SB-ADF16KM-I0 5MP Wide Angle; Fixed Eyeball, WDR 120dB; IP67, IK10

1/27″ CMOS, Progressive Scan, 2880*1620@30fps, DC12V & PoE, IP67,
Fixed lens 1,68mm@F2.0, 180° (H); 100° (V); Day/Night with IRC, Smart IR up to 20m
Ultra 265/H.264/MJPEG, ONVIF (Profile S, Profile G, Profile T), API, SDK
Dewarping, HLC, WDR 120dB, BLC, Privacy mask, ROI, Motion detection areas

Main Stream: 2880*1620@30fps; Sub: 1920*1080@30fps;
MicroSD card up to 256GB, ANR recording, Audio Built-in Mic,
DC 12V±25%, PoE (IEEE 802.3af), Max 5,5W
Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
Temperature Range: -30°C to 60°C 4kV prenaponska zaštita
Dimensions: Φ111×93, Weight: 0,48kg
TR-JB03-G-IN (Junction Box); TR-WM03-D-IN (Fixed Dome Mount); TR-UP06-IN (Pole Mount
Adapter);

https://www.uniview.com/Products/Cameras/Easy/IPC2124LE-ADF28(40)KM-G/

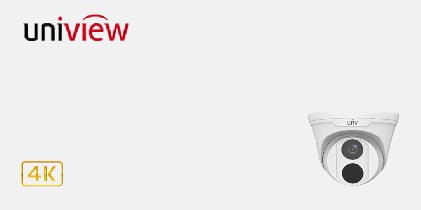

IPC3618LR3-DPF28-F

4K/8MP Fixed Dome Network Camera

1/3″ CMOS, Progressive Scan, 4K/8MP, DC12V & PoE, IP 67, 3-AXIS
Lens 2.8mm@F2.0, 112.7° (H); 60.1° (V);
Day/Night with IRC, Smart IR up to 30m
Ultra 265/H.264/MJPEG, Triple stream; ONVIF (Profile S+ Profile T), API
HLC, WDR (120dB), BLC, OSD, Privacy mask, ROI, Motion detection areas

Main Stream: 3840*2160@20fps; Sub 1280*720@20fps; Third: 352*288@20fps
DC 12V±25%, PoE (IEEE 802.3af), Max 5.0W
Temperature Range: -30°C to 60°C
Dimensions: Φ118×96mm, Weight: 0,33kg
TR-JB03-I-IN (Junction Box); TR-WM03-D-IN (Fixed Dome Mount); TR-UP06-IN (Pole Mount)

http://en.uniview.com/Products/Cameras/Easy/IPC3618LR3-DPF28(40)-F/

IPC3238SB-ADZK-I0

Intelligent LighterHunter

4K/8MP WDR MotorZoom Vandal-resistant IR Dome Network Camera
1/2,8″ CMOS, Progressive Scan, 4K/8MP, DC12V & PoE, IP67, IK10
Lens 2.8 – 12mm, Motorized, 107.4°~ 29.2° (H); 54.2°~ 16.3° (V);
Day/Night with IRC, Smart IR up to 40m, 850nm
Ultra 265/H.264/MJPEG, Triple stream; ONVIF (Profile S, G & T), API
HLC, WDR (120dB), BLC, OSD, Privacy mask, ROI, Motion detection areas

Main Stream: 3840*2160@20fps; Sub 1920*1080@30fps; Third: 720*576@30fps
Two-way Audio, Alarm in/out 1/1, Micro SD Edge Storage up to 256 GB
9:16 Corridor Mode
DC 12V±25%, PoE (IEEE 802.3af), Max 8.0W, Surge Protection 2KV
Temperature Range: -30°C to 60°C
Dimensions: Φ148 x 111.3mm, Weight: 0,97kg
TR-JB04-C-IN (Junction Box); TR-WM04-IN (Fixed Dome Mount); TR-UP06-IN (Pole Mount)

https://en.uniview.com/Products/Cameras/Prime/IPC3238SB-ADZK-I0/

IPC2K24SE-ADF40KMC-WL-I0

ColorHunter Wide Angle dual lens double stream

4MP double lens ColorHunter Wide Angle Fixed Bullet Network Camera
1/2.9″ CMOS, Progressive Scan, 4MP, DC12V & PoE, IP67, IK10,
Lens 2 x 4mm, 180°(D); 160°(H); 43.22° (V);
Day/Night with IRC, Smart IR up to 30m, 850nm
Ultra 265/H.264/MJPEG, Triple stream; ONVIF (Profile S, G & T), API
HLC, DWDR, BLC, OSD, Privacy mask, ROI, Motion detection areas

Main Stream: 3840*1080@25fps; Sub 1920*540@30fps
Two-way Audio, Alarm in/out 1/1, Micro SD Edge Storage up to 256 GB
DC 12V±25%, PoE (IEEE 802.3af), Max 6.5W, Surge Protection 4KV

Temperature Range: -30°C to 60°C
Dimensions: 273× 130 × 76mm, Weight: 0,95kg
TR-JB07-D-IN (Junction Box); TR-UP06-IN (Pole Mount Adapter)

https://global.uniview.com/Products/Cameras/Prime/IPC2K24SE-ADF40KMC-WL-I0/?

IPC868ER-VF18-B

12MP Fisheye Fixed Dome Network Camera

1/1.7″ CMOS, Progressive Scan, 12MP, DC12V & PoE, IP 66, IK10
Lens 1.4mm@F2.0, 360°
Day/Night with IRC, Smart IR up to 10m
Ultra 265/H.264/MJPEG, Triple stream; ONVIF (Profile S, Profile G, Profile T), API
HLC, DWDR, BLC, OSD, Privacy mask, ROI, Motion detection areas

Main Stream: 4000*3000@15fps; Sub 2000*1500@15fps; Third: 720×576@15fps
Two-way Audio, Alarm in/out 2/1, Micro SD Edge Storage up to 256 GB, BNC and RJ45 OutPut
DC 12V±25%, PoE (IEEE 802.3af), Max 11.7W, Surge protection 6kV
Temperature Range: -35°C to 60°C
Dimensions: Φ1495 × 55 mm, Weight: 0,39kg
TR-JB04-D-IN (Junction Box);

https://global.uniview.com/Products/Cameras/Pro/IPC868ER-VF18-B/

IPC675LFW-AX4DUPKC-VG

IPC675LFW-AX4DUPKC-VG

5MP LightHunter Active Deterrence Network PTZ Dome Camera
1/2.7″” CMOS, Progressive Scan, 5MP, IP66
Lens 2.8~12mm (4x optical zoom), 30.6°~104,1° (H) AF automatic focusing and motorized zoom lens,
Day/Night with IRC, Smart IR up to 50m
Ultra 265/H.264/MJPEG, Triple stream; ONVIF (Profile S, Profile G, Profile T), API
HLC, WDR 120dB, BLC, OSD, Privacy mask, ROI, Motion detection, EIS, 256 presets,

Main Stream: 1920×1080@30fps; Sub 1280×720@30fps; Third: 352×288@30fps
Two-way Audio, Alarm Light, Micro SD Edge Storage up to 256 GB
Pametne funkcije
prati kretanje, bljesak i glasovno upozorenje prilikom ulaska u štićeni prostor
DC 12V±25%, PoE (IEEE 802.3af), Max: 18W, 4KV surge protection
TR-JB07-D-IN (Junction Box); TR-UP06-IN (Pole Mount)
Temperature Range: -20°C to 60°C
Dimensions: Φ133mm*269.4mm, Weight: 0,87kg

https://global.uniview.com/Products/PTZ/IPC675LFW-AX4DUPKC-VG/

IPC6658SR-X25-VF

4K/8MP 25X Ultra-HD Network IR PTZ Dome Camera

1/1.8″ CMOS, Progressive Scan, 4K/8MP, IP66
Lens 6.0~ 150 mm (25x optical zoom), 60.5°~3.1° (H) AF automatic focusing and motorized zoom
lens, Day/Night with IRC, Vari-focal Laser IR up to 200m
Ultra 265/H.264/MJPEG, Triple stream; ONVIF (Profile S, Profile G, Profile T), API
HLC, dWDR , BLC, OSD, Privacy mask, ROI, Motion detection, 1024 presets,

Main Stream: 3840 × 2160@30fps; Sub 1920×1080@30fps; Third: 720×576@30fps
Audio I/O 1/1, Alarm I/O 2/1, Micro SD Edge Storage up to 256 GB
BNC video OUT;
Smart functions
Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection, Support people
flow counting and crowd density monitoring, Auto Tracking
AC 24V±25%, DC 24V±25%, PoE (PSE Required), Max: 58W, 6KV surge protection
TR-WE45-IN (PTZ Dome Wall Mount); TR-UF45-A-IN (Cieling mount)
Temperature Range: -40°C to 70°C
Dimensions: Ø227 x 384.8mm, Weight: 5.61kg

https://global.uniview.com/Products/PTZ/IPC6658SR-X25-VF/

TIC2621SR-F3-4F4AC-VD

Dualna termalno optička kamera, dualni stream 1 IP adresa

TERMALNI MODUL
Senzor 256*192 Vanadium Oxide Uncooled;
Objektiv 57.0° (H); 42.0° (V); 8~14μm; NETD≤55mk @f/1.0 @25°C;

Video stream max: 720P(1280*720), Max 30fps
OPTIČKI MODUL
1/1,8″ CMOS, Progressive Scan, 4MP, StarLIght
Objektiv 4mm@F1.6 89.9° (H); 49.1° (V);

Video stream max: 4MP(2688*1520), Max 30fps
Day/Night with IRC, Smart IR up to 50m, 850nm
Ultra 265/H.264/MJPEG, Triple stream; ONVIF (Profile S, G & T), API
WDR (120dB), BLC, OSD, Privacy mask, ROI, Motion detection areas
Two-way audio, Micro SD ANR Edge Storage up to 256 GB
Audio 1xIN, 1xOUT; ALARM 2xIN, 2xOUT; RS485 1x;
Support audio and light alarm, with red and blue warning lights built in
Support picture-in-picture mode, real-time contrast live, more convenient and clea
DC 12V±25%, PoE (IEEE 802.3af), Max 12W, Overvoltage and overcurrent protection

Temperature Range: -40°C to 70°C
Dimensions: Φ354mm x 104mm x 116mm, Weight: 1,841kg
Junction Box included; TR-UP06-C-IN (Pole Mount)

https://global.uniview.com/Products/Thermal/TIC2621SR-F3-4F4AC-VD/
